Human Broncho (ANKOR)

Human Broncho (ANKOR)

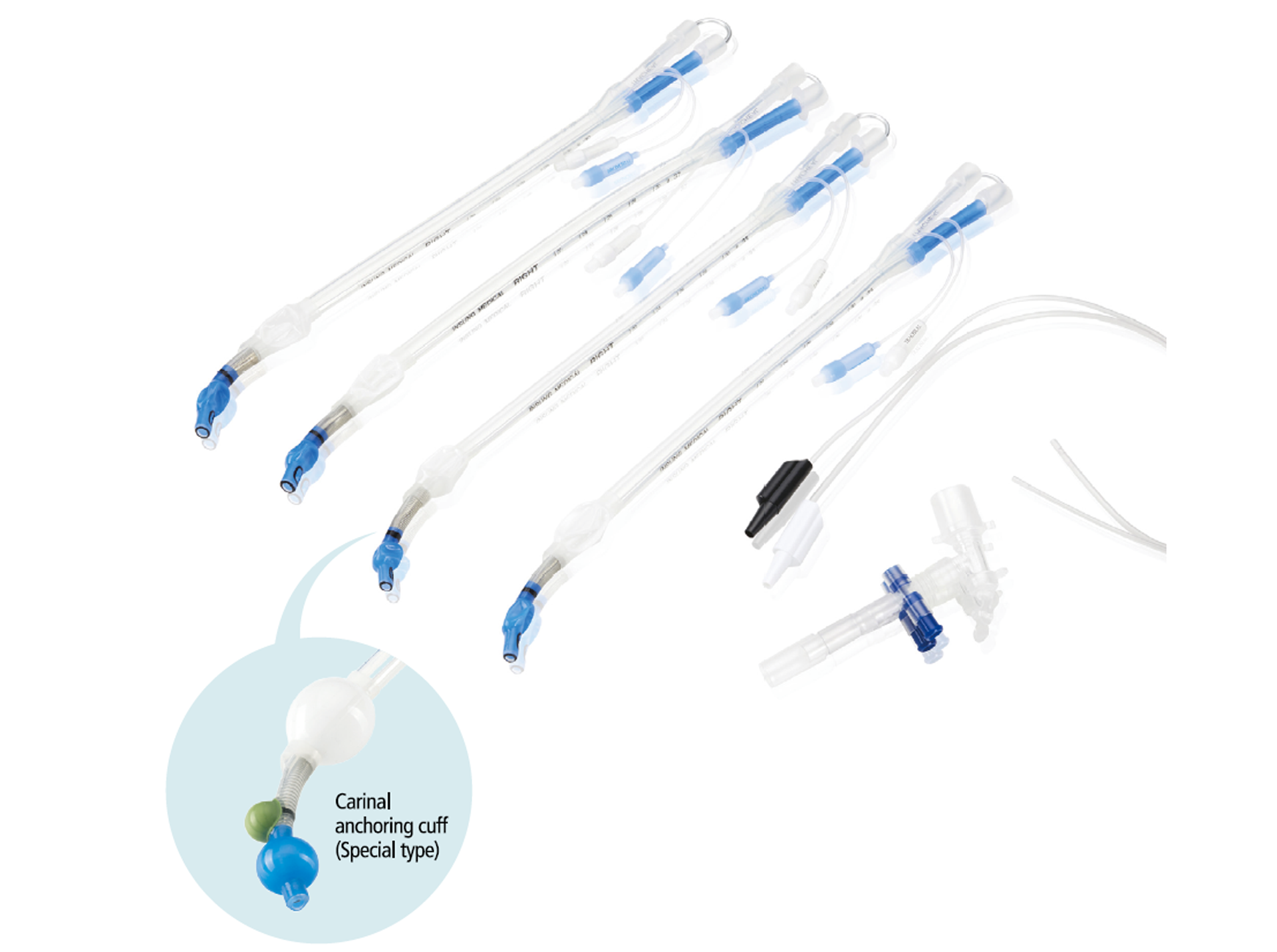

The silicone double lumen endobronchial tube is designed to isolate the lungs from one another anatomically and/or physiologically.

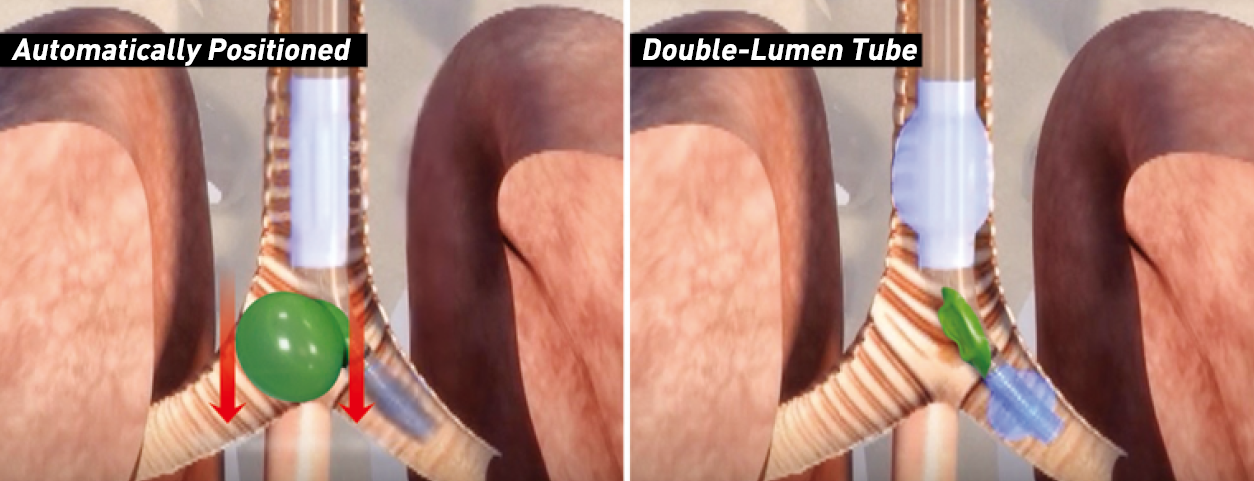

The carinal(Anchor) cuff allows automatic positioning during insertion.

SPECIFICATIONS

Catheter Size (FR)	Catheter Type	Catheter ID (mm)	Catheter OD (mm)	Cuff Maximum Volume (ml)
				Bronchial Cuff	Tracheal Cuff	Carinal Cuff
28	Left / Right	3.8 / 5.2	8.2 / 10.1	1 ~ 3	4 ~ 8	4 ~ 8
33		4.2 / 6.3	9.1 / 12.5
35		4.5 / 6.8	9.9 / 13.2	1 ~ 4	5 ~ 10	5 ~ 10
37		4.9 / 7.1	10.3 / 14.3
39		5.5 / 7.2	10.5 / 15.7
41		5.9 / 8.0	11.3 / 15.7
